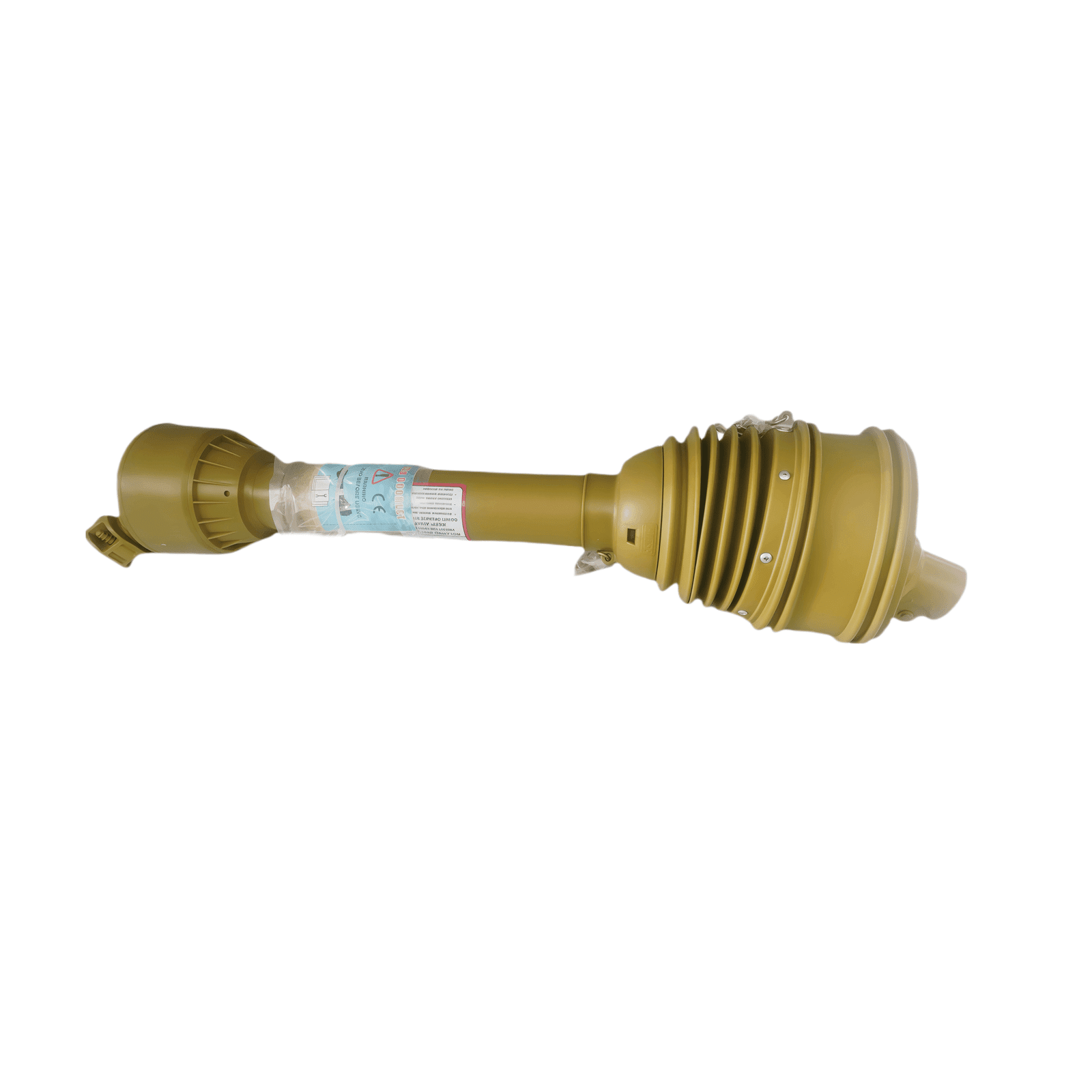

PTO Drive Shaft
A PTO drive shaft is a mechanical component used in agricultural machinery to transfer power from a tractor’s engine to attached implements, enabling them to operate efficiently. This system allows various equipment, such as mowers, tillers, balers, and sprayers, to function effectively by utilizing the tractor’s engine power.
Details of PTO Drive Shaft
BisonLink’s wide series PTO drive shafts are engineered for demanding agricultural and industrial applications. Designed to withstand heavy torque and frequent operation, our PTO shafts deliver long-lasting performance and reliability. Each shaft is built with high-quality forged components, precise spline machining, and protective safety shields to meet international safety standards.
Available in multiple configurations and lengths, these drive shafts are compatible with a wide range of tractors, implements, and machinery.
Key Features
-
Heavy-duty forged yokes and cross kits
-
Precisely machined splines for smooth torque transmission
-
Standard-compliant safety guard
-
Telescopic tube design for adjustable length
-
Reliable locking mechanisms for secure connection
-
Greasable components for extended service life
-

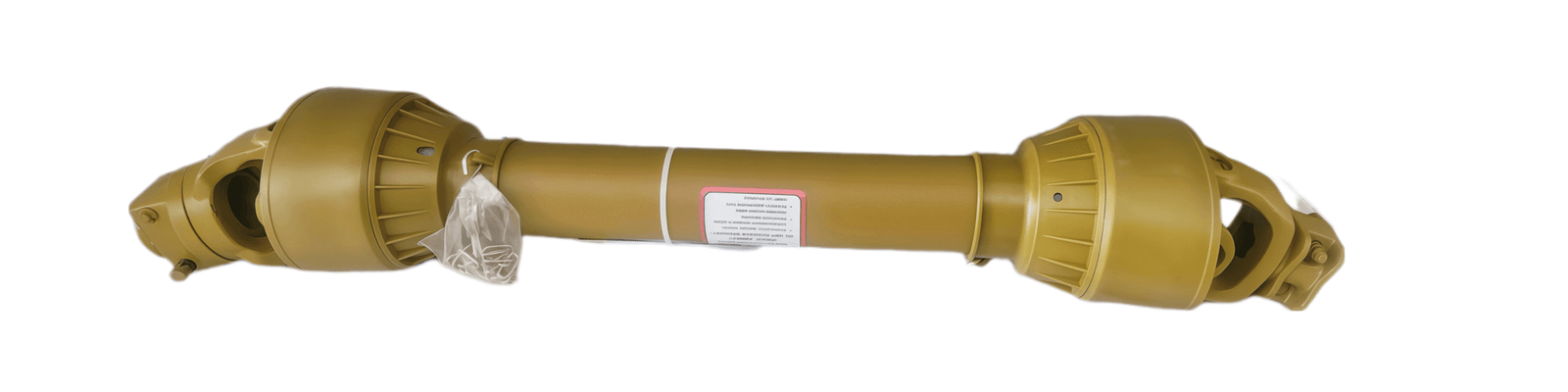

Available with shear bolt, clutch, or overrunning protection options
Available Options
Tube styles:
Spline Types: 1 1/8″ Z6, 1 3/8″ Z6, 1 3/8″ Z21, 1 3/4″ Z20, 1 3/4″ Z6, 8x32x38x6, 8x42x48*8
Power range: Suitable for 540 RPM / 1000 RPM PTO systems
Length:
Length (Closed) 600 mm – 1200 mm (Customizable)
Length (Extended): Up to 2000 mm (depending on tube type and model), Custom lengths available upon request
Connection types: Quick release yoke, Clamp yoke, Spline yoke
Cross Kits: High-strength and compatible with standard or wide-angle U-joints
Clutch Options: Shear bolt / Friction clutch / Overrunning clutch (optional)
Color options: Standard black or yellow; custom colors available for bulk orders

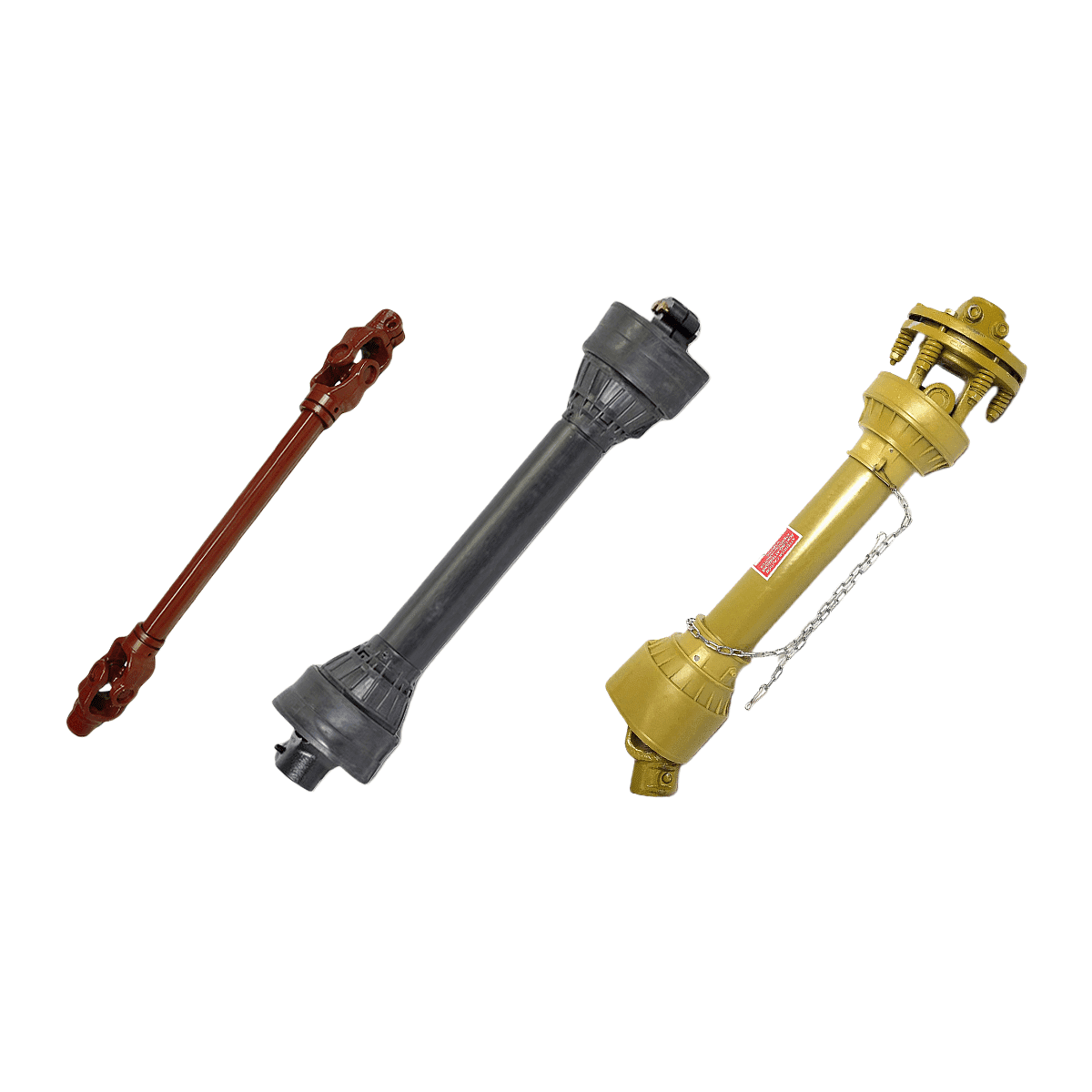

What We Supply?
| Shaft Type | Characteristics | Series | Applications |

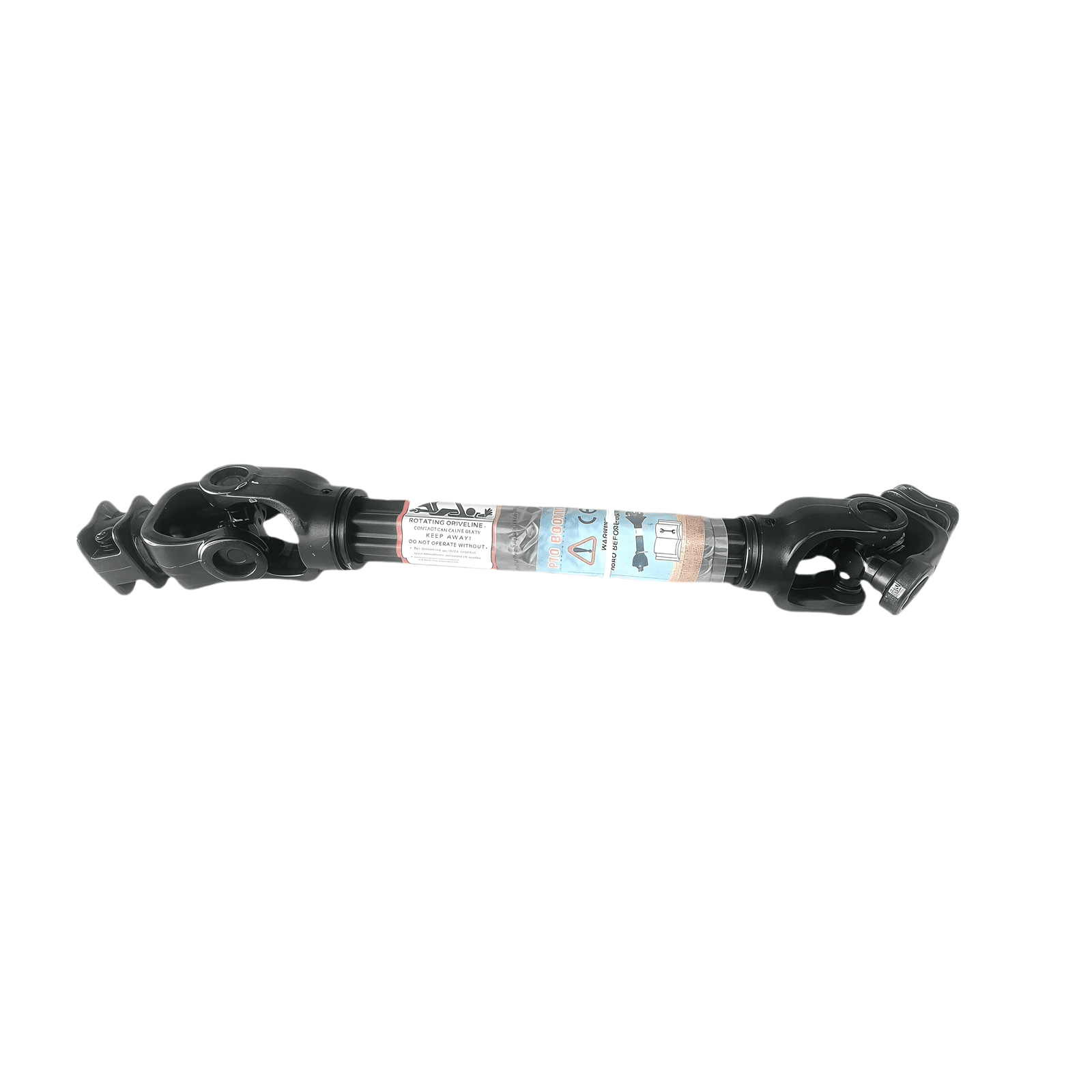

| Standard PTO Shaft | Standard structure; suitable for most general agricultural machinery. | S1 |
|

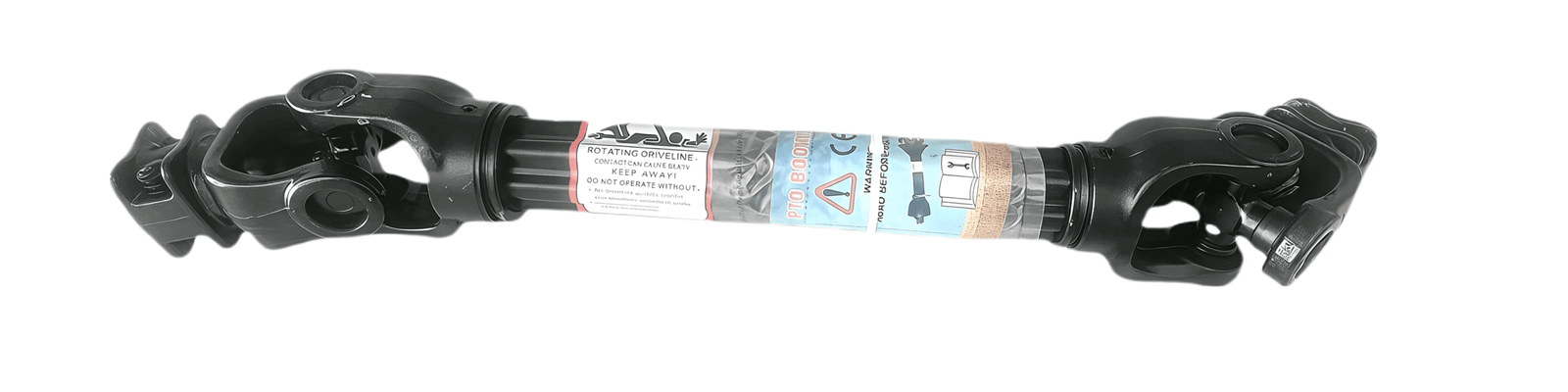

| PTO Linkage Shaft | Designed for multi-stage linkage systems; offers a flexible configuration for multiple outputs. | S6 |
|

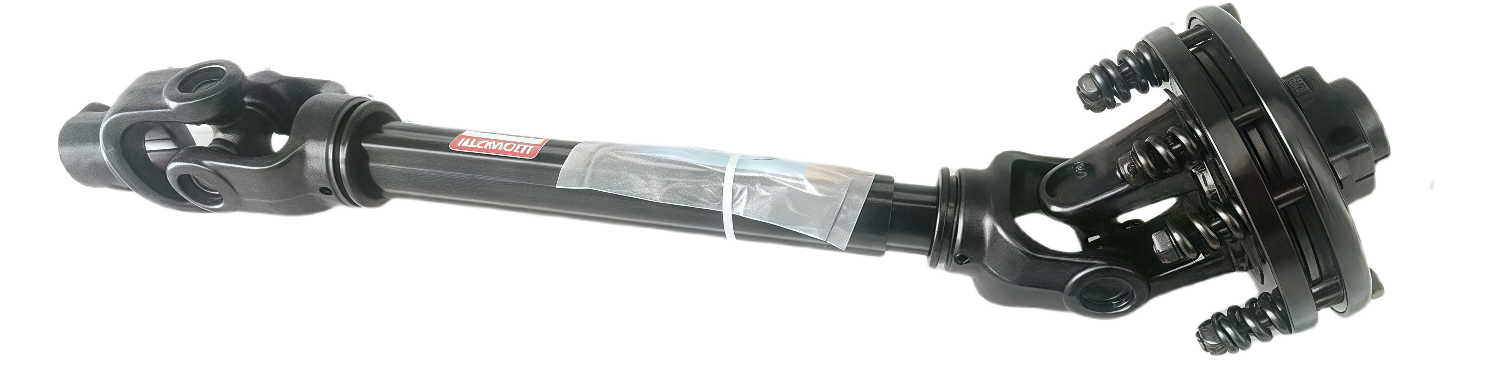

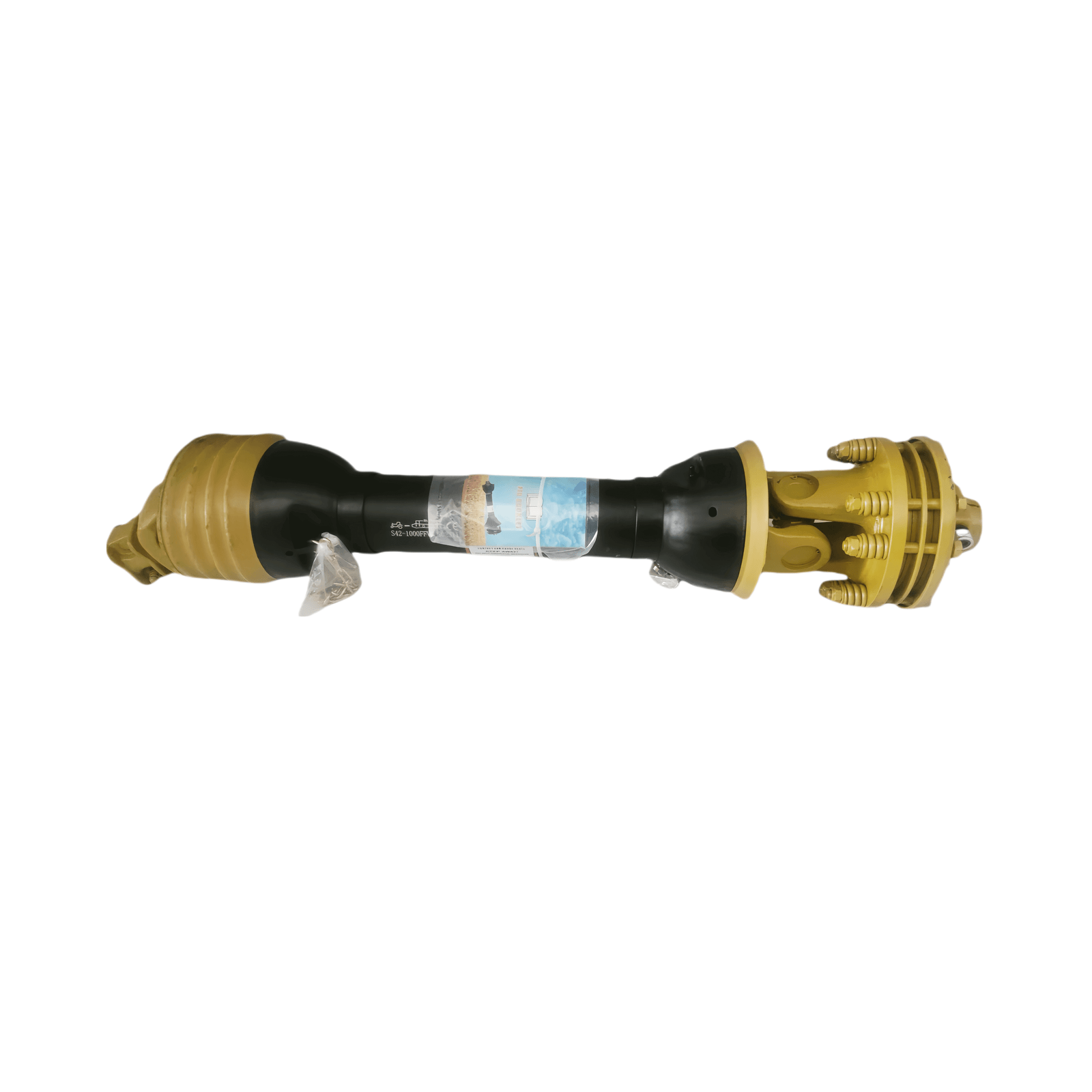

| PTO Shaft with Friction Torque Limiter | Incorporates a friction clutch that slips under overload conditions to protect the drivetrain. | S2
S4 |
|

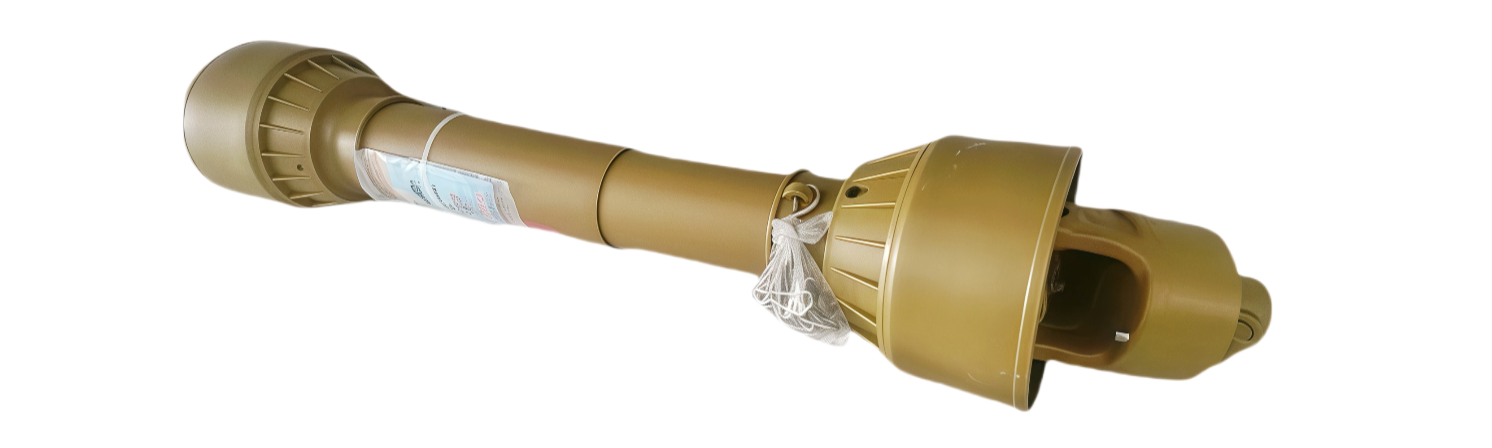

| PTO Shaft with Overrunning Clutch | Features an overrunning clutch to prevent unintended power transmission due to inertial loads, enhancing safety. | S4 S5 |
|

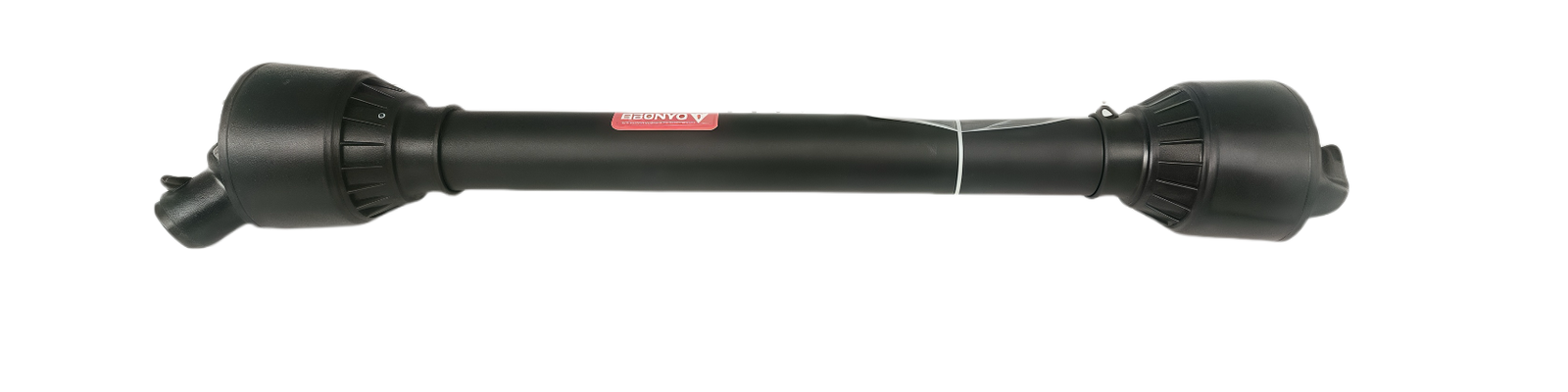

| PTO Shaft with Fixed Push-Pin Coupling | Uses a fixed push-pin joint for ease of installation and removal; ideal for applications requiring frequent coupling/decoupling. | S4 S6 S7 S8 |
|

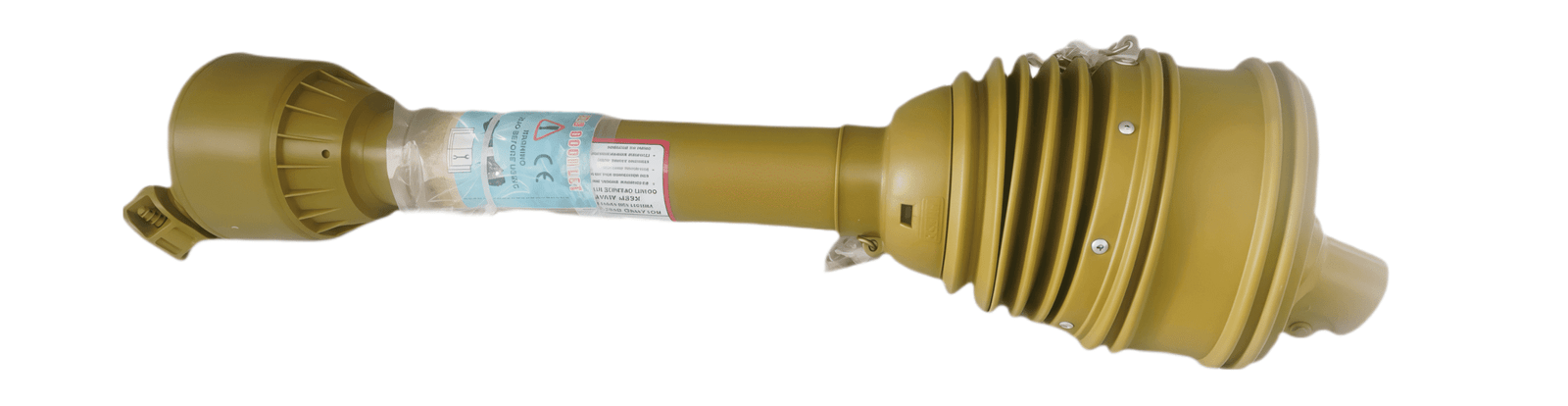

| PTO Shaft with Wide-Angle Universal Joint | Equipped with a wide-angle universal joint that accommodates high misalignment angles; ideal for constrained installation spaces. | S2 S3 S6 S8 |
|

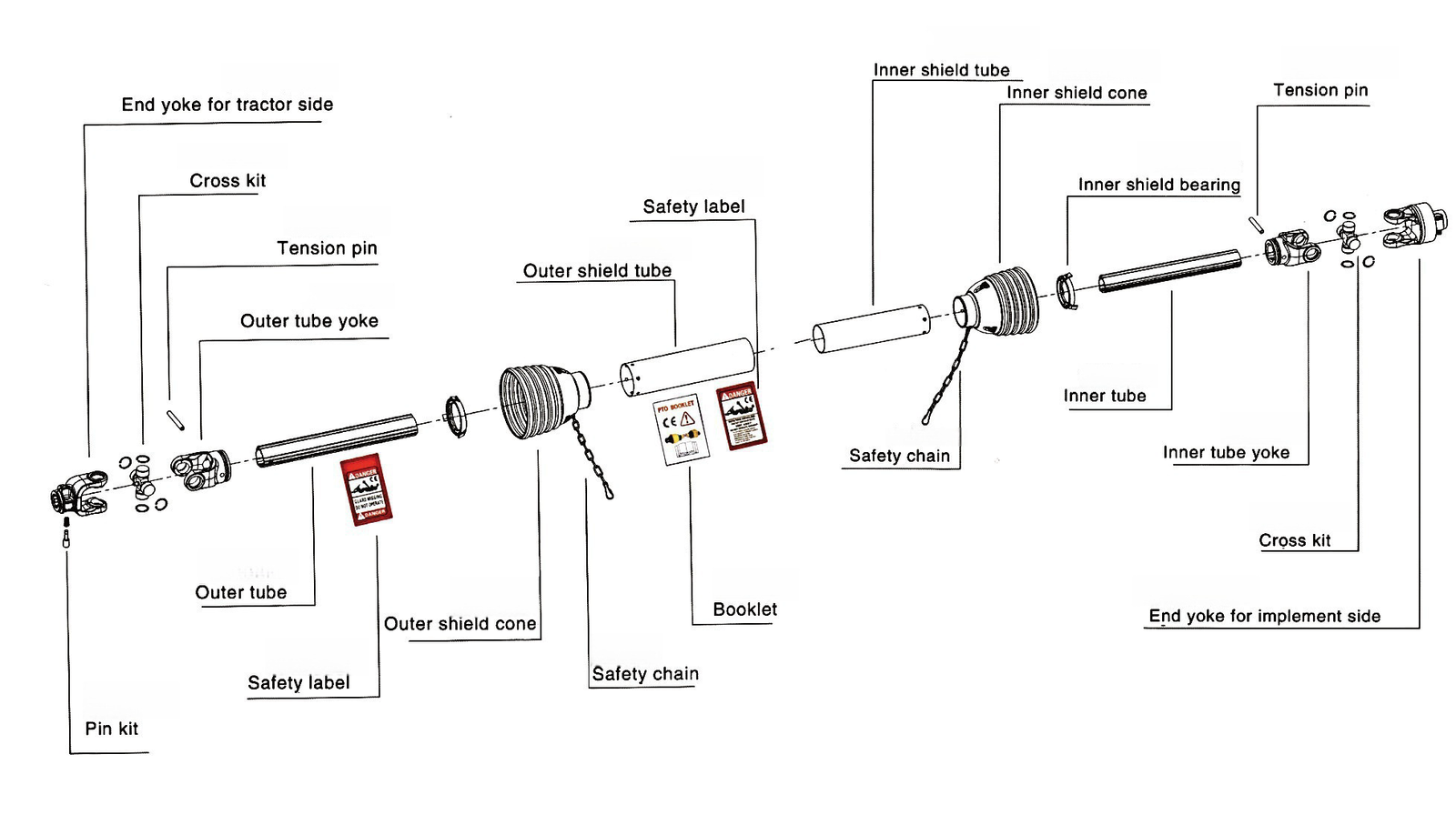

PTO Shaft Components
BisonLink provides a comprehensive selection of replacement components for PTO drive shafts to meet the maintenance and customization needs of agricultural machinery.
| Component | Description |
| Yokes | Available in various profiles (spline, hex, round bore, keyway); front and rear yokes compatible with a wide range of tractors and implements. |
| Cross Kits (U-joints) | Heat-treated steel with greaseable or non-greaseable options for long service life. |
| Safety Guards | Durable plastic shielding in black or yellow. |
| Telescopic Tubes | Multiple shapes: Tri-lobe, Lemon, Involute splined, Hexagon, Star, Rectangular; adjustable length. |
| Friction Clutches | Protects the implement from overload by slipping at a preset torque value. |
| Overrunning Clutches | Prevents reverse rotation damage when implement momentum is higher than tractor output. |
| Quick Release Mechanisms | For fast and safe connection/disconnection to tractor PTO shafts. |
| Guard Bearings & Cones | Replacement kits for plastic shields to ensure continued safety compliance. |
Catalog Download
